Integration process

Hello! This is documentation for stage environment.

1. Overview
2. Integration Credentials
3. Integration Process

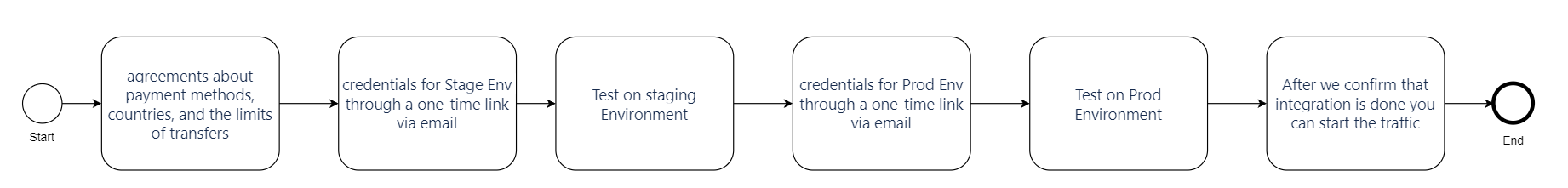

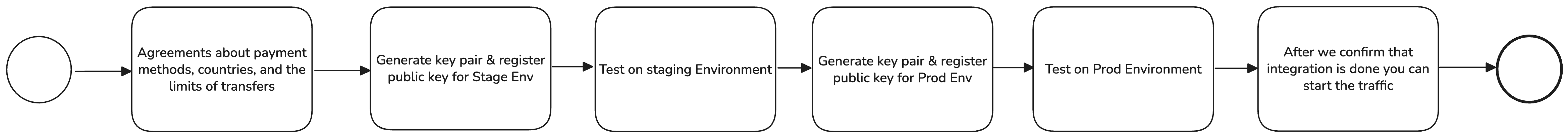

   • Merchant Onboarding and Integration Steps
   • Integration diagram
   • Check before starting to work in Prod Environment

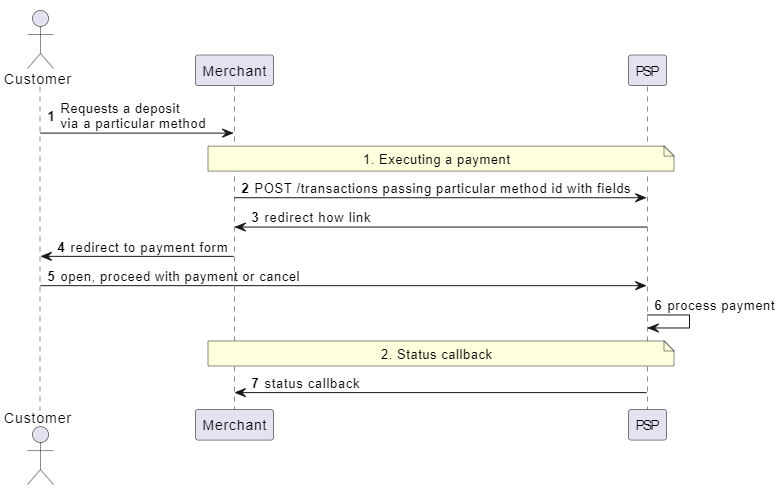

   • Sequence diagram for deposit

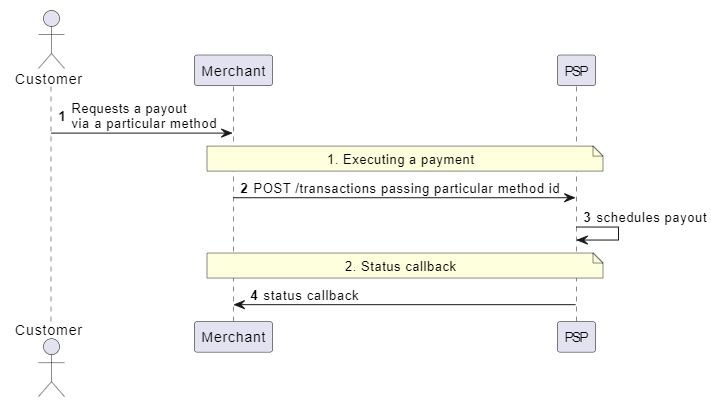

   • Sequence diagram for remit
4. Get Available Payment Methods
5. Initiate Transaction
   • Deposit Transaction
   • Remit Transaction
6. Get Transaction Status
7. Transaction Status Callback
   • Deposit Transaction Status Callback
   • Remit Transaction Status Callback
8. How to make a Refund
9. Get Merchant Account Balance
10. Get Transaction History (CSV)

Overview

This document provides a detailed guide on direct Host-to-Host integration with the APS API. It outlines the interaction between parties for processing deposit and remit payments.

Participants:

• Customer - The end user who makes a deposit or receives a payment (remit) from the merchant
• Merchant - Your company
• H2H-Backend - The APS backend system

There are two available transaction flows:

• Deposit Flow – The process where customers make payments to the merchant.
• Remit Flow – The process where the merchant remits funds to the customer.

In this guide, the terms remit and payout are used interchangeably to refer to transactions where funds are transferred from the merchant to the customer.

Integration Credentials

During the onboarding process, you should setup credentials to access the APS API for both staging and production environments. APS API uses ES-256 public key and a digital signature based on the URL, HTTP method, request payload and timestamp.

---

Setting up signed requests

This is a step-by-step walkthrough. You don't need any special background in cryptography to follow it — just copy the commands and code as shown.

Step 1 — Generate your key pair

You'll create two files on your own machine: a private key (which you keep secret, forever, and never send to us) and a public key (which you upload to us — it's not secret).

Pick the tab that matches what you have available:

bash / zsh (macOS, Linux)

If you have openssl installed (it comes pre-installed on macOS and virtually every Linux distribution), run:

openssl ecparam -name prime256v1 -genkey -noout -out private.pem
openssl ec -in private.pem -pubout -out public.pem

These two commands work identically whether your shell is bash or zsh (macOS's default shell since Catalina) — no changes needed either way.

PowerShell (Windows)

If you have openssl available (e.g. installed via Git for Windows, which bundles it), the exact same two commands work in PowerShell as-is:

openssl ecparam -name prime256v1 -genkey -noout -out private.pem
openssl ec -in private.pem -pubout -out public.pem

If you don't have openssl and don't want to install it, PowerShell 7+ (with .NET 5 or later) can generate the same kind of key pair on its own:

$ecdsa = [System.Security.Cryptography.ECDsa]::Create([System.Security.Cryptography.ECCurve+NamedCurves]::nistP256)

$privatePem = $ecdsa.ExportECPrivateKeyPem()
$publicPem  = $ecdsa.ExportSubjectPublicKeyInfoPem()

Set-Content -Path "private.pem" -Value $privatePem -NoNewline
Set-Content -Path "public.pem"  -Value $publicPem  -NoNewline

(nistP256 is the same curve as prime256v1 / secp256r1 — just Microsoft's naming for it.)

Either way, you end up with two files:

• private.pem — starts with -----BEGIN EC PRIVATE KEY-----. Keep this file safe. Treat it like a password — don't email it, don't commit it to a public repository, don't send it to our support team. Only your server needs it.
• public.pem — starts with -----BEGIN PUBLIC KEY-----. This one is safe to share — you'll upload it to us in the next step.

What is prime256v1? It's the name of a specific, widely-supported elliptic curve (also called P-256 or secp256r1). This is the curve our system expects — using a different one won't work.

Step 2 — Add your public key to your merchant dashboard

Sign in to your merchant dashboard with an account that has the Admin role, then add your public key under Settings → API Keys.

📖 Detailed walkthrough with screenshots →

Once your key is added, the dashboard will show you a matching APP-TOKEN — this is your account identifier, and you'll send it with every request (in the X-App-Token header) so we know which public key to check your signature against.

Note: each public key you add gets its own unique APP-TOKEN. If you add a second key later (for example, for a different environment or a key rotation), it will get a different APP-TOKEN — keep the right private key paired with the right APP-TOKEN in your code.

Step 3 — Build the string you're going to sign

Before signing anything, you first build a single string by joining four pieces of information together, in this exact order, with nothing in between them (no spaces, no separators):

SIGNED_DATA = TIMESTAMP + HTTP_METHOD + URL + REQUEST_BODY

• TIMESTAMP — the current time, in RFC-3339 format (e.g. 2026-09-26T10:00:00Z). You'll send this exact same string in the X-Sign-Timestamp header.
• HTTP_METHOD — the HTTP method of your request, in UPPERCASE (GET, POST, etc.)
• URL — the full request URL: scheme, domain, path, and query string all together (e.g. https://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions). See "URL rules" right below — this is the piece people most often get wrong.
• REQUEST_BODY — the exact raw bytes of your request body, byte-for-byte identical to what you actually send. If your request has no body (like a GET request), use an empty string here — don't put anything in its place. If it does have a body, sign the exact bytes your HTTP client puts on the wire — don't re-serialize, re-indent, or "pretty-print" the JSON after you've computed the signature, or the bytes won't match what the server receives and verification will fail.

Example. Say you're creating a transaction with this request:

curl --location 'https://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions' \
--header 'Content-Type: application/json' \
--header 'X-App-Token: {APP_TOKEN}' \
--header 'X-Sign-Timestamp: {TIMESTAMP}' \
--header 'X-Signature: {SIGNATURE}' \
--data-raw '{"amount":100.2,"fields":{"transaction":{"deposit_method":"06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"}}}'

With:

• Timestamp: 2026-09-26T10:00:00Z
• Method: POST
• URL: https://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions
• Body (exactly as sent, no extra whitespace): {"amount":100.2,"fields":{"transaction":{"deposit_method":"06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"}}}

Then the string you sign is exactly:

2026-09-26T10:00:00ZPOSThttps://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions{"amount":100.2,"fields":{"transaction":{"deposit_method":"06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"}}}

(That's the timestamp, immediately followed by POST, immediately followed by the URL, immediately followed by the JSON body — all glued together with nothing in between.)

URL rules

Our server rebuilds the URL from your request and compares it to what you signed, character by character. So the URL in your signed string must follow these rules:

1. Always start with https://, even if you're testing through a proxy or tool that shows something else.
2. Use the host you're calling, in lowercase (e.g. fpf-api.proc-gw.com, not FPF-API.PROC-GW.COM).
3. Path must be exactly what you send on the wire. Don't re-encode it, don't add or remove a trailing slash after you've signed.
4. Query parameters must be sorted alphabetically and lowercase — see "Sort and lower-case your query parameters" right below. This is required, not optional.
5. Don't re-encode already-encoded characters, and keep the same letter case in percent-escapes (e.g. %3A) that your HTTP client actually sends. Re-encoding a value that contains a colon, slash, or other special character — or changing %3A to %3a — produces a different byte string than what goes out on the wire, and the signature won't match.
6. Anything after # is never sent to the server, so leave it out.
7. Pass each parameter only once. Names that differ only in case (Id and id) count as the same name. To pass a list of values, use a single parameter in the format documented for it, e.g. payment_methods=card,crypto. Repeated keys (ids=1&ids=2, ids[]=1&ids[]=2) are not supported.
8. Pass every parameter as name=value, even when the value is empty: flag=. A parameter without = is not supported.
9. Separate parameters with & only. Empty pairs are not allowed: no &&, and no & at the start or end.
10. If there are no parameters, don't add ? to the URL.

Example with a query string — fetching the payment methods available for a deposit method pair (GET, no body):

curl --location 'https://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/info?payment_methods=1d21c7e3-de57-47e2-9ccc-31c5e16dea04%3A492e48b4-7d5a-4a0c-af2f-0699f75d996b' \
--header 'X-App-Token: {APP_TOKEN}' \
--header 'X-Sign-Timestamp: {TIMESTAMP}' \
--header 'X-Signature: {SIGNATURE}' \
--header 'Content-Type: application/json'

The string you'd sign for this request is:

2026-09-26T10:00:00ZGEThttps://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/info?payment_methods=1d21c7e3-de57-47e2-9ccc-31c5e16dea04%3A492e48b4-7d5a-4a0c-af2f-0699f75d996b

(There's nothing at the end because a GET request has no body. Note the %3A in the query string — that's a URL-encoded colon, specified payment method setting ID in the payment_methods value. It's kept exactly as-is, uppercase hex and all — see rule 5 above.)

This particular example doesn't actually change under the sort/lower-case rule — there's only one parameter (nothing to sort), and every letter in its value is already lowercase hex (the GUIDs). The only "uppercase-looking" part is the %3A escape, and that one is explicitly left alone per rule 5. If you only ever call endpoints with a single, already-lowercase parameter, you may never see this rule actually change anything — but implement it anyway, since other endpoints or future parameters may not be as tidy.

Sort and lower-case your query parameters (required)

If your request has a query string with more than one parameter, you must:

1. Sort the parameters alphabetically by name.
2. Lower-case every parameter name. Parameter values are left exactly as sent — don't lower-case them.

Do this to the URL you actually send, not just to the string you sign — the two need to be identical, since our server checks your signature against the exact URL your request arrives with.

Example:

Before: ?Foo=Bar&AAA=Test
After:  ?aaa=Test&foo=Bar

(Notice Test and Bar keep their original capitalization — only the parameter names aaa and foo changed.)

Note on percent-encoded characters (like the %3A in the real example above): lower-casing applies to the parameter name, not to the hex digits inside a %XX escape sequence that might appear within it — don't turn %3A into %3a. In practice you don't need to handle this by hand: the normalization helpers below (and virtually every standard URL-encoding function, in any language) always emit percent-escapes with uppercase hex digits, so this falls out automatically as long as you encode your query string the normal way, once, and don't hand-edit it afterwards.

Why this is required: some HTTP libraries — this shows up especially often in PHP — don't guarantee a consistent order (or even consistent casing) for query parameters when you build a request from an associative array. Two requests that look identical in your code can end up sent slightly differently "on the wire." Sorting and lower-casing removes that uncertainty completely: no matter what your library does internally, you always land on the same, single correct string.

Here's how to do this normalization in a few common languages:

Python

def normalize_query(raw_query: str) -> str:
    pairs = []
    for pair in raw_query.split("&"):
        if pair:
            key, _, value = pair.partition("=")
            pairs.append((key, value))
    # Only the parameter name is lower-cased; the value is left as-is.
    normalized = sorted((key.lower(), value) for key, value in pairs)
    return "&".join(f"{key}={value}" for key, value in normalized)

Go

// Requires Go 1.23+ (for the iterator-based maps.Keys).
func NormalizeQuery(rawQuery string) string {
    normalized := url.Values{}
    for _, pair := range strings.Split(rawQuery, "&") {
        if pair == "" {
            continue
        }
        key, value, _ := strings.Cut(pair, "=")
        lowerKey := strings.ToLower(key)
        normalized.Add(lowerKey, value) // value left as-is
    }

    pairs := make([]string, 0, len(normalized))
    for _, key := range slices.Sorted(maps.Keys(normalized)) {
        for _, v := range normalized[key] {
            pairs = append(pairs, key+"="+v)
        }
    }
    return strings.Join(pairs, "&")
}

C#

public static string NormalizeQuery(string rawQuery)
{
    var pairs = rawQuery.TrimStart('?')
        .Split('&', StringSplitOptions.RemoveEmptyEntries)
        .Select(p =>
        {
            var idx = p.IndexOf('=');
            var key = idx >= 0 ? p[..idx] : p;
            var value = idx >= 0 ? p[(idx + 1)..] : "";
            return (Key: key.ToLowerInvariant(), Value: value); // value left as-is
        })
        .OrderBy(p => p.Key, StringComparer.Ordinal)
        .ThenBy(p => p.Value, StringComparer.Ordinal);

    return string.Join("&", pairs.Select(p => $"{p.Key}={p.Value}"));
}

PHP

This is the fix for the exact problem this rule exists for: ksort() after lower-casing gives you a deterministic order no matter how your original array was built.

function normalizeQuery(string $rawQuery): string
{
    $params = [];
    foreach (explode('&', $rawQuery) as $pair) {
        if ($pair === '') {
            continue;
        }
        [$key, $value] = array_pad(explode('=', $pair, 2), 2, '');
        $params[$key] = $value;
    }

    $normalized = [];
    foreach ($params as $key => $value) {
        // Only the key is lower-cased; the value is left as-is.
        $normalized[strtolower((string) $key)] = $value;
    }

    ksort($normalized, SORT_STRING);

    $pairs = [];
    foreach ($normalized as $key => $value) {
        $pairs[] = $key . '=' . $value;
    }

    return implode('&', $pairs);
}

Step 4 — Sign it

Now sign that string with your private key, using SHA-256 as the hash and ES256 (ECDSA over curve P-256) as the signature algorithm. Encode the result in Base64 — that final value is what goes in the X-Signature header.

Here's how to do that in a few common languages:

Python

Requires the cryptography package: pip install cryptography

import base64
from cryptography.hazmat.primitives import hashes, serialization
from cryptography.hazmat.primitives.asymmetric import ec

def sign(sign_timestamp: str, http_method: str, url: str, req_body: bytes, private_key_pem: bytes) -> str:
    private_key = serialization.load_pem_private_key(private_key_pem, password=None)
    signed_data = sign_timestamp.encode() + http_method.encode() + url.encode() + req_body
    signature = private_key.sign(signed_data, ec.ECDSA(hashes.SHA256()))
    return base64.b64encode(signature).decode()

Go

func Sign(signTimestamp, httpMethod, url string, reqBody, privateKeyPEM []byte) (string, error) {
    block, _ := pem.Decode(privateKeyPEM)
    privateKey, err := x509.ParseECPrivateKey(block.Bytes)
    if err != nil {
        return "", err
    }

    signedData := signTimestamp + httpMethod + url + string(reqBody)
    hashed := sha256.Sum256([]byte(signedData))

    signature, err := ecdsa.SignASN1(rand.Reader, privateKey, hashed[:])
    if err != nil {
        return "", err
    }
    return base64.StdEncoding.EncodeToString(signature), nil
}

C#

Requires .NET 5.0 or later.

public static string Sign(string signTimestamp, string httpMethod, string url, byte[] reqBody, string privateKeyPem)
{
    using var ecdsa = ECDsa.Create();
    ecdsa.ImportFromPem(privateKeyPem);

    var prefix = Encoding.UTF8.GetBytes(signTimestamp + httpMethod + url);
    var signedData = new byte[prefix.Length + reqBody.Length];
    Buffer.BlockCopy(prefix, 0, signedData, 0, prefix.Length);
    Buffer.BlockCopy(reqBody, 0, signedData, prefix.Length, reqBody.Length);

    // Important: request DER format explicitly — .NET's default is a different format.
    byte[] signature = ecdsa.SignData(signedData, HashAlgorithmName.SHA256, DSASignatureFormat.Rfc3279DerSequence);
    return Convert.ToBase64String(signature);
}

PHP

Requires the openssl extension (included by default in most PHP installs).

function sign(string $signTimestamp, string $httpMethod, string $url, string $reqBody, string $privateKeyPem): string
{
    $privateKey = openssl_pkey_get_private($privateKeyPem);
    $signedData = $signTimestamp . $httpMethod . $url . $reqBody;

    $signature = '';
    openssl_sign($signedData, $signature, $privateKey, OPENSSL_ALGO_SHA256);

    return base64_encode($signature);
}

A signature will look different every time, even for the same input — and that's normal. ECDSA signatures include some randomness by design, so signing the exact same string twice with the exact same key will still produce two different (but both valid) signatures. Don't worry if your signature doesn't match an example byte-for-byte — what matters is that it verifies correctly (see the test vector below).

Step 5 — Send the headers with your request

Every signed request needs these three headers:

Header	Value
X-App-Token	Your APP-TOKEN, from Step 2
X-Sign-Timestamp	The exact timestamp string you used in Step 3
X-Signature	The Base64-encoded signature from Step 4

That's it — no need to send anything else related to authentication. Don't send X-App-Secret for new integrations; it isn't used with signed requests.

---

Test vector — check your implementation before going live

Use this worked example to confirm your code produces a valid signature before you try it against our real API. This uses a throwaway test key pair — don't use it for anything real.

Private key (for signing, in the test only):

-----BEGIN EC PRIVATE KEY-----
MHcCAQEEIAAgroGhza8H+6iRgbrSENejPZyCx9jyyuN0MH48r++zoAoGCCqGSM49
AwEHoUQDQgAEdN3uINmPVb1oVuQb3NdP51Qy9eggH8MOyK3DuLlONNRtnnJq+7AX
h4wMLgJklRozEvknH/7Zt2M3qkEyEXvqlg==
-----END EC PRIVATE KEY-----

Matching public key (use this to verify your own output):

-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEdN3uINmPVb1oVuQb3NdP51Qy9egg
H8MOyK3DuLlONNRtnnJq+7AXh4wMLgJklRozEvknH/7Zt2M3qkEyEXvqlg==
-----END PUBLIC KEY-----

Inputs (the same transaction-creation request from Step 3):

• Timestamp: 2026-09-26T10:00:00Z
• Method: POST
• URL: https://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions
• Body: {"amount":100.2,"fields":{"transaction":{"deposit_method":"06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"}}}

A valid signature for this exact input (yours will be different — see the note above — but it should verify against the public key just as well):

MEYCIQDZZ6R/7gvoXqzKC3Nf0K5M0XC4PQ1y+Q2MJCRx8Rr0ggIhAIImtw8QWwuUE/bZJAGe+mAg6D3brWrOPfnLNSETQpVj

How to check your own signature is valid, using openssl on the command line:

# 1. Save the exact concatenated string to a file (no trailing newline)
printf '%s' '2026-09-26T10:00:00ZPOSThttps://fpf-api.proc-gw.com/api/v3/61c21492-fd83-4180-adf6-8b0f4e0423bc/transactions{"amount":100.2,"fields":{"transaction":{"deposit_method":"06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"}}}' > signed_data.txt

# 2. Save your Base64 signature to a file and decode it
echo "YOUR_SIGNATURE_HERE" | base64 -d > signature.der

# 3. Verify it against the public key above (save it as test_public.pem)
openssl dgst -sha256 -verify test_public.pem -signature signature.der signed_data.txt
# Should print: Verified OK

If you get Verified OK, your signing code is correct and you're ready to switch your APP-TOKEN and public key over to your real merchant account.

---

List of authorization errors

If something's wrong with your request's authentication, you'll get back HTTP 401 Unauthorized with a JSON body containing a message and a trace_id (useful if you need to contact support about a specific request). Here's what each one means:

message	What it means	What to do
signature expired	Your X-Sign-Timestamp is more than 5 minutes away from our server time.	Generate a fresh timestamp right before signing and sending — don't sign ahead of time and reuse it later, and make sure your server clock is in sync (NTP).
invalid signature	The signature doesn't match the request. Usually means something in the request changed after you computed the signature — most often the body got re-serialized, re-indented, or otherwise altered between signing and sending.	Double-check that the exact bytes you signed (timestamp + method + URL + body) are the exact bytes you send — see the note on byte-exact bodies in Step 3.
public key not found	The X-App-Token you sent doesn't match any active public key — it may be mistyped, or the key may have been deleted/rotated in the dashboard.	Confirm the APP-TOKEN in your request matches a key that's currently listed under Settings → API Keys.

{"message":"signature expired","trace_id":"1c4d01ee9acaae3f2871f6ca1b7b879a"}
{"message":"invalid signature","trace_id":"3f3c4d62c278b01e90c00d7ed066e441"}
{"message":"public key not found","trace_id":"79092cc19cae32e20770de08e9f3a02b"}

---

Authentication FAQs

Q: My signature doesn't match the example in the test vector byte-for-byte. Is something wrong? Not necessarily — see the note in Step 4. ECDSA signatures aren't deterministic, so the same input signed twice (even with the same key) produces different valid signatures. Use the openssl verify check instead of comparing bytes directly.

Q: What happens if my timestamp is too old or too far in the future? Requests are rejected if the timestamp differs from our server time by more than 5 minutes, to protect against replay attacks. Keep your server clock in sync (e.g. via NTP) and generate a fresh timestamp for every request.

Q: Can I use a different elliptic curve, like P-384 or P-521? No — we only support P-256 (also called prime256v1 or secp256r1) for now.

Q: What format does the public key need to be in? Standard PEM, PKIX/SPKI format — the kind produced by openssl ec -in private.pem -pubout -out public.pem. It should start with -----BEGIN PUBLIC KEY-----.

Q: Can I have more than one key pair? Yes. Each key you add gets its own APP-TOKEN. This is useful for separating environments (staging vs. production) or for rotating keys without downtime — add a new key, switch your integration over, then delete the old one.

Q: My signature is valid locally but the API rejects it. What should I check first? First, check which error message you got — see "List of authorization errors" above, each one points at a different cause. If it's invalid signature, it's almost always the URL: check that (1) it starts with https://, (2) the host is lowercase, (3) the query parameters are in the same order and encoding you actually send, and (4) there's no trailing-slash difference between what you signed and what you sent. Print the exact string you signed and compare it with the request line your HTTP client really sends.

Q: I'm testing through a proxy or a local tunnel, and the URL shows http:// or a different host. Which one do I sign? Sign the https:// URL with the public host you're calling (fpf-api.proc-gw.com), as described in "URL rules".

Q: Does the order of the query parameters matter? Yes — and it's not "whatever order you happen to send it in" anymore. Query parameters must be sorted alphabetically by parameter name, in both the signed string and the actual request. See "Sort and lower-case your query parameters" above.

Q: Why do I need to lower-case my query parameter names? Won't that change my data? Only the parameter name is lower-cased — the value is always left exactly as you send it, so this never changes your data. It's required so that every client — regardless of language or HTTP library — always produces the exact same string for the exact same logical request, since some HTTP libraries don't guarantee consistent casing for parameter names when building a request from an associative structure.

---

Old authentication method [DEPRECATED]

DEPRECATED!

If you integrated with us before signed requests were available, your existing integration using X-App-Token + X-App-Secret headers will continue to work for now. There's no fixed shutoff date yet, but we recommend migrating to signed requests soon, since it's the more secure option going forward and the one we'll be supporting long-term. This legacy method is not available for new integrations — new merchants should set up signed requests from the start.

For reference, here's the same transaction-creation request from Step 3, using the old method — no X-Signature or X-Sign-Timestamp, just your token and secret:

Create transaction

curl https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
        --header 'Content-Type: application/json'
        --header 'X-App-Token: {APP_TOKEN}'
        --header 'X-App-Secret: {APP_SECRET}'
        --data-raw '{
            "amount": 100.2,
            "fields": {
                "transaction": {
                    "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"
                }
            }
        }


---

Other API Credentials

• Merchant GUID – A unique identifier for the merchant, used in the API endpoint path as merchantGUID.
• Callback Secret Key – Used to validate callback requests from APS. Status callbacks include a request signature for verification.

Environment-Specific URLs

• Staging Environment: https://fpf-api.armenotech.net
• Production Environment: https://fpf-api.proc-gw.com

Each environment has its own credentials, so ensure you use the correct set when switching between staging and production.

Integration Process

Merchant Onboarding and Integration Steps

1. Agreement on Payment Methods, Countries, and Limits

   You (the Merchant) and APS agree on the supported payment methods, geographic regions, and transfer limits. For information regarding limits and geographical coverage, please contact your account manager.

2. Generating and Registering Your Key Pair for the Staging Environment

   Generate an ES256 (P-256) key pair on your side — your private key never leaves your systems and is never shared with APS. Sign in to the Merchant Portal with an account that has the Admin role and upload your public key under Settings → API Keys for the Staging Environment. You'll receive a unique APP-TOKEN tied to that key — use it together with your private key to sign your requests. See the Integration Credentials guide for a step-by-step walkthrough, including how to generate the key pair and sign requests.

   Before making any API requests, confirm that the APP-TOKEN you're using matches the key pair you generated, and that your signing code produces a valid signature — the Integration Credentials guide includes a test vector you can check your implementation against.

3. Test on Staging Environment

   Review the integration documentation and proceed with testing:

   • Start by retrieving all available payment methods. Use the relevant API request to receive an array of payment methods available to you. The response will include details such as currency, fees, and limits for each method.
   • Make 1 or 2 test transactions and test a refund process. Refer to the How to make a Refund section for guidance.

4. Generating and Registering Your Key Pair for the Production Environment

   After successfully completing your tests on the Staging Environment and signing all necessary documents, generate a separate ES256 key pair for Production and upload the public key in the Merchant Portal to receive your Production APP-TOKEN.

   Note: your Production key pair and APP-TOKEN are separate from Staging — you cannot reuse your Staging key pair in Production.

5. Test on Prod Environment

   API requests work the same way in the Production Environment as they do in Staging. Use your Production key pair and APP-TOKEN to repeat your integration checks — including a test transaction and a refund — before relying on the integration for live traffic.

6. Go-Live Confirmation

   After we confirm that your integration is complete and working correctly, you can start sending live traffic through the Production Environment.

---

Additional information: once onboarded, you'll also gain access to the Merchant Portal, where you can log in using the email address associated with your account. For detailed instructions on how to use the Merchant Portal, please refer to the Merchant Portal Guide.

Integration Diagram

Check-list before Go Live

1. Access to Failure Reasons Ensure that your operations team has access to the external_message field in the callback. This field contains the reason for transaction failures, which can help minimize the number of support requests to us.

2. Traffic Launch Notification Notify us at least 1 day in advance before launching live traffic. Do not initiate traffic without our approval.

3. Support After Integration

   • Once integration is complete, you will have access to the Support Portal, where your operations team can resolve issues in the Production environment.

   • To obtain access to the support portal, provide your account manager with the email addresses of your employees.

   • For any inquiries related to live traffic, please use the Support Portal. Before reaching out, check the provided links to identify error causes:

     • Portal for deposit transactions

     • Portal for remit transactions.

Sequence Diagram for Deposit

The happy-path flow is as follows:

1. Customer Initiates Deposit: A customer initiates a deposit request using a specific payment method, typically accessed through a button or link on the merchant's website or application.

2. Merchant Submits Transaction Data: The merchant submits the transaction details to the payment system.

3. PSP Sends Payment Link: The Payment Service Provider (PSP) generates a payment link and sends it to the merchant.

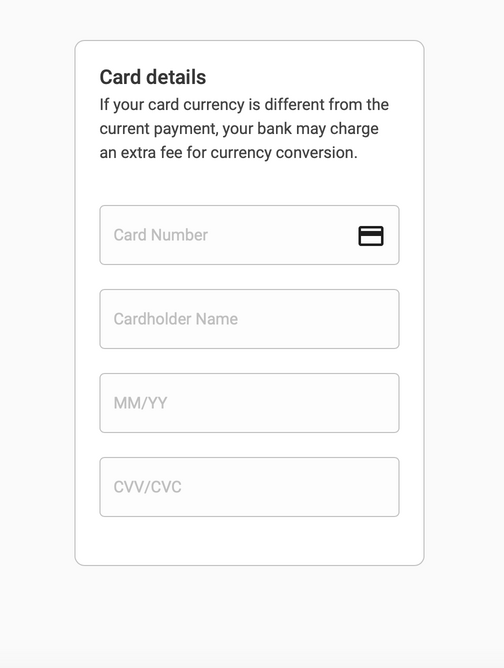

4. Customer Redirected to Payment Form: The merchant redirects the customer to the payment form via the provided link.

5. Customer Redirected Back to Merchant: After successfully registering the deposit, the H2H system redirects the customer back to the merchant’s website.

6. PSP Sends Callback with Transaction Result: The PSP processes the payment and sends an HTTP callback to the merchant containing the transaction result. Refer to the Get Transaction Status chapter for more details.

Sequence Diagram for Remit

The happy-path flow is as follows:

1. Customer Initiates Remit: A customer initiates a remit request using a specific payment method, typically accessed through a button or link on the merchant's website or application.

2. Merchant Submits Transaction Data: The merchant submits the transaction details to the payment system.

3. Customer Redirected Back to Merchant: After successfully registering the remit, the Payment Service Provider (PSP) redirects the customer back to the merchant’s website.

4. PSP Sends Callback with Transaction Status: The PSP processes the remit and sends an HTTP callback to the merchant with the transaction status. Refer to the Get Transaction Status chapter for more details.

Get Available Payment Methods

The GET /info request retrieves information about available payment methods and their associated payment details. By making this request, you can obtain all the necessary information regarding the connected payment methods.

Example request:

Get payment methods

curl https://fpf-api.armenotech.net/api/v3/merchantGUID/info \
        --header 'X-App-Token: {APP_TOKEN}'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'


Old authentication method [DEPRECATED]

Get payment methods

curl https://fpf-api.armenotech.net/api/v3/merchantGUID/info \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'


Example response:

  {
    "methods": [
      {
        "guid": "c8e18874-ce90-4a6a-86cd-bcd17f815476:d93717d0-86d0-435a-8191-ea1b43d04a96",
        "fee_fixed": 0,
        "fee_percent": 0,
        "customer_fee_percent": 0,
        "customer_fee_fixed": 0,
        "min_amount": 1.43,
        "max_amount": 570.72,
        "label": "EUR",
        "logo_url": "https://fpf-assets.armenotech.com/mastercard.svg",
        "mobile_logo_url": "https://fpf-assets.armenotech.com/mastercard.svg",
        "payment_group": "BANKCARD",
        "payment_group_name": "Bank card",
        "digits_delivery": 2,
        "digits_asset": 2,
        "rate": 1.4,
        "delivery_currency": "iso4217:EUR",
        "method_currency": "BRL",
        "method_symbol": "R$",
        "country_code": "WWC",
        "direction": "in"
        "deposit": {
          "guid": "c8e18874-ce90-4a6a-86cd-bcd17f815476:d93717d0-86d0-435a-8191-ea1b43d04a96",
          "fields": {
            "external_id": {
              "optional": true,
              "description": "Merchant’s external ID",
              "hidden": true
            },
            "redirect_url": {
              "optional": true,
              "description": "url where a customer will be redirected with parameters status=[successful|failed|canceled], transaction_id, method, amount, currency",
              "hidden": true,
            },
            "status_callback_url": {
              "optional": true,
              "description": "Callback URL",
              "hidden": true
            }
          },
        }
      }
     ]
 }

The response is an array of available payment methods. Each method includes detailed information about the payment currency, fees, and limits.

Name	Description
guid	Payment method guid
fee_fixed	Fixed fee according to the contract with the merchant
fee_percent	Percent fee according to the contract with the merchant
customer_fee_percent	Percent fee to be paid by an end user according to the contract with the merchant
customer_fee_fixed	Fixed fee to be paid by an end user according to the contract with the merchant
min_amount	Minimum possible amount per transaction
max_amount	Maximum possible amount per transaction
label	Method Label
logo_url	Method Logo
mobile_logo_url	Mobile method logo
payment_group	Additional information on the method
payment_group_name	Additional information on the method
digits_delivery	Number of significant digits for delivery currency
digits_asset	Number of significant digits for asset
rate	Conversion rate of asset to delivery currency
delivery_currency	Currency code
method_currency	The currency in which all amounts are calculated using this method
method_symbol	Currency symbol (may be missing) to display to the client
country_code	Country code
direction	Two input/output values are possible. They say in which direction the payment takes place in = deposit, out = remit
deposit/remit	The object containing the fields of the payment method is called deposit/remit
fields	An object that lists the fields required for transfer within each payment method. The required fields may vary even within the same payment method, so we recommend making a /info request before each payment to ensure you collect the correct fields.
field.optional	If true, the parameter is not required to be filled in
field.description	Description of the field
field.hidden	Recommendation whether to hide this field from customer

Initiate Transaction

Deposit Transaction

In the example request below, you can see how to initiate deposit transactions:

Example request with the required fields:

Initiate transaction

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_TOKEN}'
--header 'X-Sign-Timestamp: {TIMESTAMP}'
--header 'X-Signature: {SIGNATURE}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"
          }
      }
  }'


Old authentication method [DEPRECATED]

Initiate transaction

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"
          }
      }
  }'


You can get the list of optional fields making Get Available Payment Methods request.

Example request with the optional fields:

Initiate transaction with optional fields

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_TOKEN}'
--header 'X-Sign-Timestamp: {TIMESTAMP}'
--header 'X-Signature: {SIGNATURE}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "deposit": {
                      "redirect_url": "https://www.google.com",
                      "status_callback_url": "https://fast-payment-flow-merchant.armenotech.dev/94b9f3ed-ee84-4789-8c4b-41ee8c61ad41/transactions",
                      "external_id": "external transaction identifier, string",
                      "payer_id": "external payer identifier, string",
                        "customer_ip_address": "93.109.244.86",
                      "from_country": "GB",
                      "from_last_name": "Smith",
                      "from_first_name": "John",
                      "billing_street": "Test street",
                      "billing_town": "London",
                      "billing_post_code": "0839",
                      "from_email": "customer@gmail.com",
                      "referer_domain": "www.externalwebsite.com",
                      "locale_lang": "es"
              }
          }
      }
  }'


Old authentication method [DEPRECATED]

Initiate transaction with optional fields

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "deposit": {
                      "redirect_url": "https://www.google.com",
                      "status_callback_url": "https://fast-payment-flow-merchant.armenotech.dev/94b9f3ed-ee84-4789-8c4b-41ee8c61ad41/transactions",
                      "external_id": "external transaction identifier, string",
                      "payer_id": "external payer identifier, string",
                      "customer_ip_address": "93.109.244.86",
                      "from_country": "GB",
                      "from_last_name": "Smith",
                      "from_first_name": "John",
                      "billing_street": "Test street",
                      "billing_town": "London",
                      "billing_post_code": "0839",
                      "from_email": "customer@gmail.com",
                      "referer_domain": "www.externalwebsite.com",
                      "locale_lang": "es"
              }
          }
      }
  }'


When making a request to create a transaction, it is important to ensure the correct nesting of fields in the request body.

Name	Description
amount	The total amount of the transaction, represented in the currency of the payment method, must be a positive number.
deposit_method	A unique identifier for the payment method. Retrieve the available payment methods using the Get Available Payment Methods request.
deposit	An object containing the details of the transaction. This includes fields necessary for processing.
status_callback_url	The URL to which callback requests will be sent when the transaction status changes. Ensure that this endpoint is publicly accessible and capable of handling incoming requests for proper notification of status updates.
redirect_url	A URL to which the customer will be redirected upon completion of the deposit. This field is applicable only to deposit transactions. Note that some payment methods may not support redirection.
external_id	The merchant's unique identifier for the transaction. It is a string of up to 96 characters. Uniqueness across all transactions is not required.
payer_id	An identifier for the payer within the merchant's internal system. It is a string of up to 96 characters. Uniqueness across transactions is not required.
Transaction Processing Recommendations	For improved transaction processing, we recommend submitting all relevant fields in full, ensuring they contain accurate and reliable information about the client:
customer_ip_address	The IPv4 or IPv6 address of the customer's device.
from_last_name	The last name of the customer. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
from_first_name	The first name of the customer. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
from_country	The country from which the transaction is being made. ISO 3166 country names, alpha-2 or alpha-3 country codes.
billing_street	The street address provided by the customer when opening their bank account. Must contain 2-100 characters.
billing_town	The town provided by the customer when opening their bank account. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
billing_post_code	The postcode provided by the customer when opening their bank account. Must contain 0-20 characters.
from_email	The email address provided by the customer when opening their bank account. Must contain 0-100 characters.
referer_domain	The domain of the original URL from which the transaction request originated. Used to identify the website or application that directed the user to complete the payment.
locale_lang	An ISO 639-1 language code to set the localization of the checkout form. Supported languages: en - English, es - Spanish, pt - Portuguese, de - German, fr - French.

Note: The IP address and email must belong to the user, be consistent for one card, and should not be the same across all traffic transactions or GEO locations. The billing address must, at a minimum, contain the user’s actual country and postal code. The billing address country for each issuer must match the issuer’s country.

Example deposit response:

  {
      "id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4",
      "amount": 1000,
      "amount_in": 1000,
      "customer_fee": 0,
      "contract_fee": 0,
      "merchant_fee": 0,
      "amount_out": 1000,
      "amount_body": 1000,
      "how": "https://cert.monnetpayments.com/api-payin/payment/voucher/27685?verification=4bdf290c8145af72f75c7fcefb99f33f5ac29eac7071d5dacf03e518e895a4f3d8e91dc803af10195f00ee0c58d7e4c6091ed2c8cfaa631d953bcae250a132d0",
      "extra_info": {
          "displayed_fields": [
              "is_redirect"
          ],
          "external_transaction_id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4",
          "is_redirect": "true",
          "transaction_id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4"
      }
  }

In response you will get the following:

Name	Description
id	Unique identifier for the transaction.
amount	Total amount of the transaction, including any applicable fees.
amount_in	The total amount paid by the customer.
customer_fee	The fee charged to the customer based on the merchant's contract terms.
contract_fee	The fee charged by APS according to the terms of the merchant's contract.
merchant_fee	The calculated fee according to the merchant's contract. This fee is retained by the merchant and can be negative if the merchant opts to compensate the customer's fee.
amount_out	The final amount settled to the merchant's account by APS after deducting any applicable fees.
amount_body	The amount of the payment excluding any commissions or fees.
amount_in	Amount that a customer pays
how	External URL to the checkout form. The merchant's application redirects the customer to this external system for payment confirmation and execution.
external_transaction_id	The transaction identifier in the external payment system. For Binance, this field contains the APS transaction identifier.
is_redirect	Flag indicating if the customer was redirected to an external payment system.
merchant_external_id	The transaction ID from the merchant, as received in the /transactions request under external_id

Note: If you get a response that is not 200 OK, you can ask the integration team what is the problem.

Handling the "how" field

Redirect to checkout form

Redirecting to the checkout form is required for payment methods where the customer must complete the payment via a web form. In this case, the how field contains a link to the web form where the customer provides payment details.

The merchant’s application should redirect the customer to the checkout form using the URL received in the how element of the /transactions response.

For example: https://app.payment.com/payment/secpay?linkToken=793c9fb78be54d898a041d370303c8c7&_dp=Ym5jOi8vYXBwLmJpbmFuY2UuY29tL3BheW1lbnQvc2VjcGF5P3RlbXBUb2tlbj1CYVpqdmZoWDI0NUcyaWF5UGV0TVFReURMeWF6SnM2SSZyZXR1cm5MaW5rPWh0dHBzOi8vc3RhZ2UtNWNjODdlZjgtY2NkNy00Nzc0LTg2ZTAtNDViNTE1MzQ5MjVjLXBheW1lbnRkcml2ZXIuYXJtZW5vdGVjaC5uZXQvcmVkaXJlY3Q_dHJhbnNhY3Rpb25fZ3VpZD05NDk0NmM2Ny0zODk1LTRiYjEtODg4Yi1lNzNlNzM0YWNmNDYmY2FuY2VsTGluaz1odHRwczovL3N0YWdlLTVjYzg3ZWY4LWNjZDctNDc3NC04NmUwLTQ1YjUxNTM0OTI1Yy1wYXltZW50ZHJpdmVyLmFybWVub3RlY2gubmV0L3JlZGlyZWN0P3RyYW5zYWN0aW9uX2d1aWQ9OTQ5NDZjNjctMzg5NS00YmIxLTg4OGItZTczZTczNGFjZjQ2

You will need to take the “how” link from the response and redirect customer to checkout form:

The customer will enter the card details.

Direct post of bank card data

The APS bank card payment method supports the direct posting of payment details, including the card number, cardholder name, expiry date, and CVV/CVC. To process an APS bank card deposit, make a POST request to the URL provided in the how field with the customer’s payment details.

When using the bank card payment method, you can directly transfer the payment details to us.

Content-Type: application/json

Request example:

 curl 'https://card-processing-form.armenotech.net/payment/TRANSACTION_ID/merchantGUID'
  -H 'Content-Type: application/json'
  --data-raw '{
    "number": "4111111111111111",
    "holder": "John Doe",
    "exp_month": 10,
    "exp_year": 25,
    "csc": "010"
  }

Request fields:

Name	Type	Description
number	string	The bank card number.
holder	string	Name of the cardholder as it appears on the card.
exp_month	int	Expiration month of the card (1-12).
exp_year	int (last 2 digits)	Last two digits of the card's expiration year.
csc	string (3 digits)	The 3-digit CVC/CVV security code from the back of the card.
from_api	boolean	Indicates the 3D Secure process: if false, the customer will be redirected to a 3D Secure page; if true, a link to the 3D Secure page will be provided in the auth_3d_url attribute of the response.

Success response example:

200
{
  "status": "success",
  "auth_3d_url": "https://some3ds.com"
}

Name	Type	Description
auth_3d_url	string (url, optional)	The URL for 3D Secure (3DS) authentication. The customer should be redirected to this URL to complete the 3DS verification process.

Fail response example:

400
{
  "status": "fail",
  "retryable": false,
  "external_status": "something_went_wrong",
  "external_message": "We weren't able to process your transaction."
}

Possible cases

Case	Status code	Retryable	Example response
Request success and transaction went with 3Ds flow.	200	false	{ "auth_3d_url": "https://example.com/auth_3d_url", "redirect_url": "https://example.com/redirect_url", "status": "success" }
Request success and 2d flow	200	false	{ "auth_3d_url": "https://example.com/auth_3d_url", "redirect_url": "https://example.com/redirect_url", "status": "success" }
Invalid order state	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Bad request (Invalid request format)	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Card holder is empty	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "card_holder_is_empty", "external_message": "Card holder field is empty." }
Card expired	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "card_is_expired", "external_message": "Your card has expired." }
Invalid expire month	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Invalid CSC	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Invalid card number length	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card_number_length", "external_message": "Invalid card number length." }
Invalid card number check digit value	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Service Error	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Provider Error (Error while processing request)	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "external_error", "external_message": "Invalid response from bank." }
Visa not allowed	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "visa_not_allowed", "external_message": "Bank card type Visa is not allowed." }
Card user not authorized for payment	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "verification_error", "external_message": "Payment verification has failed." }
Insufficient funds	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "insufficient_funds", "external_message": "Insufficient funds on the card balance." }

Note: you don't need "how" field for remit payments, as you have already provided the card number during the initiation step.

If you have successfully made a request, you can check the transaction status in two ways:

• Waiting for the callback: you can learn information about the callbacks here.

• Making a status request:: you can learn information about the requests here.

Remit Transaction

Note: to initiate a remit transaction, you must have sufficient funds in your balance. Please remember to top up your balance via the financial chat. We will provide you with access to this chat.

Note: for testing remit transactions in the Staging Environment, we will top up your balance.

To ensure you have all the required fields, please refer to the section on Get Available Payment Methods

Example of bank card remit transaction request:

Initiate transaction for remit

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-Sign-Timestamp: {TIMESTAMP}'
--header 'X-Signature: {SIGNATURE}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "remit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "remit": {
   "external_id": "merchant_external_id_string",
   "payer_id": "merchant_payer_id_string",
   "customer_ip_address": "93.109.244.86",
   "referer_domain": "www.externalwebsite.com",
   "redirect_url": "https://www.yourswebsite.com/redirect",
   "status_callback_url": "https://www.yourswebsite.com/callback",
   "from_country": "USA",
   "to_bank_card": "2222444422224444",
   "to_bank_card_exp": "12/31"
              }
          }
      }
  }'


Old authentication method [DEPRECATED]

Initiate transaction for remit

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "remit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "remit": {
   "external_id": "merchant_external_id_string",
   "payer_id": "merchant_payer_id_string",
   "customer_ip_address": "93.109.244.86",
   "referer_domain": "www.externalwebsite.com",
   "redirect_url": "https://www.yourswebsite.com/redirect",
   "status_callback_url": "https://www.yourswebsite.com/callback",
   "from_country": "USA",
   "to_bank_card": "2222444422224444",
   "to_bank_card_exp": "12/31"
              }
          }
      }
  }'


When making a request to create a transaction, it is crucial to ensure that the correct nesting of fields is maintained in the request body.

Name	Description
amount	The base amount of the transaction, excluding any fees or commissions.
remit_method	The payment method identifier (GUID). You can obtain this by making a request for Get Available Payment Methods.
remit	An object containing additional fields related to the transaction, such as payment details.
status_callback_url	The URL where callback requests will be sent when the transaction status changes.
redirect_url	The URL to which the customer will be redirected after the deposit is completed. This applies only to deposit transactions, and note that some payment methods may not support redirection.
external_id	The merchant's transaction ID, which can be up to 96 characters long. This ID is not required to be unique across all of the merchant's transactions.
payer_id	The payer's identifier in the merchant's internal system, up to 96 characters long. This ID is not required to be unique across the merchant's transactions.
referer_domain	The domain of the original URL from which the transaction request originated. Used to identify the website or application that directed the user to complete the payment.

Example of remit transaction response:

{
      "id": "dfba9a85-464f-4f88-9afc-865296bca4ef",
      "amount": 103.7,
      "amount_in": 103.7,
      "customer_fee": 0,
      "contract_fee": 3.7,
      "merchant_fee": 3.7,
      "amount_out": 100,
      "amount_body": 100,
      "extra_info": null
}

Get Transaction Status

You can request the transaction status via the API using the transaction ID.

Example request:

Get Status Transaction

curl https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID \
        --header 'X-App-Token: APP_KEY'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'
        --header 'Content-Type: application/json'


Old authentication method [DEPRECATED]

Get Status Transaction

curl https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'
        --header 'Content-Type: application/json'


Example response:

{
    "id": "f2a86886-675c-4f55-a247-757a4ef55e53",
    "external_id": "test 2434",
    "status": "completed",
    "refunded": true,
    "amount": 3,
    "amount_in": 3,
    "amount_out": 3,
    "amount_fee": 0,
    "amount_body": 3,
    "customer_fee": 0,
    "merchant_fee": 0,
    "external_message": "APPROVED",
    "fiscal_status": "done",
    "refunds": {
        "amount_refunded": "3",
        "amount_fee": "0",
        "payments": [
            {
                "id": "ee9de236-6f6a-48b7-b1ad-bb496e6ba5dc",
                "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
                "status": "completed",
                "fiscal_status": "refunded",
                "amount": 3,
                "rrn": "688447"
            }
        ]
    }
}

A JSON object containing the following fields:

Name	Type	Optional	Description
id	UUID	true	Unique identifier for the transaction.
merchant_external_id	string	true	External transaction ID provided by the merchant.
status	string enum	true	Current status of the transaction. Possible values include:
	pending_sender: awaiting payment from the customer.
	pending_external: The customer has made a payment, and the transaction is under AML-check (Anti-Money Laundering). Alternatively, the merchant has initiated a refund, and the refund is pending completion.
	completed: The transaction has been successfully completed.
	error: There was an error processing the transaction.
	pending_transaction_info_update: An error occurred during transaction initiation. This status should be interpreted as an error.
fiscal_status	Indicates the current status of the operation. Possible values include:	yes
	pending: Operation is in progress.
	canceled: Operation was canceled.
	expired: Payment was not completed in time, and the operation expired.
	done: Operation completed.
	failed: (For Payouts only) Unable to complete the operation due to lack of funds or error.
amount	float	false	The total transaction amount as specified in the request.
refunded	bool	true	Indicates if the transaction was refunded.
amount_in	float	true	The amount paid by the sender. In deposit transactions, this is the amount the customer has paid in the contract currency. In remit transactions, this is the amount charged to execute the transaction.
amount_out	float	true	The received amount. In deposit transactions, this is the amount credited to the merchant. In remit transactions, this is the amount credited to the customer.
amount_fee	float	true	The fee charged based on the contract.
customer_fee	float	true	The fee paid by the customer, as calculated per the contract.
merchant_fee	float	true	The fee paid or earned by the merchant. A positive value means the merchant owes the fee, while a negative value means the merchant benefits.
refunds.amount_refunded	float	true	The amount refunded from the transaction.
refunds.amount_fee	float	true	The fee charged on the refunded amount, according to the contract.
refunds.payments[?].id	UUID	true	Unique identifier for the refund.
refunds.payments[?].external_id	string	true	External refund ID provided by the merchant during the refund creation request.
refunds.payments[?].status	string enum	true	Status of the refund. Possible values include:
	pending: A request has been sent to the acquiring bank to initiate the refund. Status updates will be provided upon receiving feedback.
	completed: The transaction has been fully refunded.
	rejected: The refund request was rejected
refunds.payments[?].fiscal_status	The current status of the refund operation. May be one of the following:	yes
	pending: Operation is in progress.
	failed: Unable to complete the operation due to lack of funds or error.
	refunded: Refund operation completed.
refunds.payments[?].amount	float	true	The refund amount including any applicable fees based on the contract.
refunds.payments[?].rrn	string	true	Retrieval Reference Number (RRN), an identifier for the refund provided by the payment provider.

Transaction Status Callback

Before Going Live, ensure that your operations team has access to the external reason provided in the callback within the external_message field. This information is essential for understanding the reasons behind rejected transactions.

The transaction status callback is used to notify merchants about the transaction status following a payment operation.

The Payment Service Provider (PSP) requests the merchant's system by sending a request to the endpoint specified in the status_callback_url field of the /transactions request. The merchant's system should respond with a 200 OK status.

Transaction status defined by 2 elements sep31_status and refunded:

Successful transaction has sep31_status = completed and refunded = false

Refunded transaction has sep31_status = completed and refunded = true

Failed transaction has sep31_status = error

Callback Security and Request Verification

To ensure that callback requests originate exclusively from our platform and have not been tampered with, webhook requests are signed using the HMAC-SHA256 algorithm when a secret key is configured.

⚠️ Deprecation Notice: The legacy fields md5_sig and md5_body_sig passed within the JSON payload are now deprecated. It is highly recommended to migrate to the new X-Signature header validation described below.

Overview

• Algorithm: HMAC-SHA256
• Signature Location: Sent as a custom HTTP header named X-Signature.
• Payload: The signature is generated over the raw bytes of the entire incoming JSON request body.
• Secret Key: Use your unique Callback Secret Key obtained from the Integration Credentials section. If no secret key is configured for the your account, the X-Signature header will not be sent.

Signature Generation Formula

X-Signature =hex(HMAC-SHA256(secret_key,request_body))

Where:

• request_body — The raw, unparsed bytes of the JSON body.
• secret_key — Your unique secret key.

---

Verification Code Examples

To prevent timing attacks, always use constant-time string comparison functions when validating the signature in your application.

Go

import (
    "crypto/hmac"
    "crypto/sha256"
    "encoding/hex"
)

// Verify checks if the incoming X-Signature header matches the computed HMAC
func Verify(body []byte, secret, headerSig string) bool {
    mac := hmac.New(sha256.New, []byte(secret))
    mac.Write(body)
    expected := hex.EncodeToString(mac.Sum(nil))

    return hmac.Equal([]byte(expected), []byte(headerSig))
}

Deposit Callback

Request example:

  {
    "amount_body": 500,
    "amount_in": 500,
    "amount_out": 475.5,
    "asset": "stellar:APSUSDM:GB7OUO5NY5WQKXJJ7PFFZEJOKN4BA7IOEN3Z6SWAY26LGTREJJYZH2ZT",
    "body_currency": "iso4217:USD",
    "deposit_details": {
      "bank_card_mask": "471227******0407",
      "from_first_name": "Saurabh",
      "from_last_name": "Ghodmare",
      "payment_group": "bank_card",
      "payment_method": "r:fab9dcd0-bb93-4f09-b65f-2edb69a3a213"
    },
    "md5_body_sig": "30e93a687812eb759f867d55d77a064d",
    "md5_sig": "a99ec94e699e361fdb33aa50140e474b",
    "merchant_external_id": "202678449",
    "refunded": true,
    "refunds": {
      "amount_fee": "2",
      "amount_refunded": "8",
      "amount_refunded_to_customer": "6",
      "payments": [
        {
          "amount": 502,
          "fee": 2,
          "amount_body": 3,
          "id": "2a8bf37c-3d3d-4280-9e42-680c8ce6150a",
          "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
          "rrn": "435307914502",
          "arn": "123456789123",
          "status": "completed",
          "fiscal_status": "refunded"
        }
      ]
    },
    "sep31_status": "completed",
    "seq": 1724999384570,
    "status": "refunded",
    "fiscal_status": "done",
    "transaction_id": "b829f009-afe0-45c2-9996-8941f80bcb0e"
  }

Request body contains the following elements:

Field	Description	Required
transaction_id	Unique identifier for the PSP transaction.	yes
body_currency	Processing currency applicable between the merchant and PSP.	yes
status	Current status of the transaction. Possible values include:	yes
	canceled: Transaction canceled by the payment provider.
	expired: Payment not completed in time, transaction expired
	payed: Payment completed by the customer, but the funds haven't yet settled to the PSP account
	done: Transaction successfully completed.
	refund_pending: Refund request sent to the acquiring bank, awaiting feedback on refund status.
	refunded: Transaction fully refunded.
	refund_rejected: Refund rejected.
fiscal_status	Indicates the current status of the deposit operation. Possible values include:	yes
	pending: Operation is in progress.
	canceled: Deposit was canceled.
	expired: - Payment was not completed in time, and the operation expired.
	done: Operation completed.
md5_sig	MD5 signature to validate callback request. md5(transaction_id+status+secret_key) Deprecated! Please use X-Signature header instead	yes
seq	Timestamp in UnixMilli format indicating when the callback was created.	yes
sep31_status	Status of the Sep31 transaction. Possible values: - completed - error	yes
refunded	Indicates whether the transaction has been refunded: true/false	yes
refunds.amount_fee	Fee associated with the refund according to the contract.	yes
amount_refunded	Amount to be refunded.	yes
amount_refunded_to_customer	The exact sum that will be send to customer	yes
refunds.payments[?].amount	Total amount to refund, including any applicable fees as per the contract.	yes
refunds.payments[?].amount_body	Amount that is due to the end customer	yes
refunds.payments[?].fee	Fee associated with the refund according to the contract.	yes
refunds.payments[?].id	Unique identifier (UUID) for the refund transaction.	yes
refunds.payments[?].external_id	External refund ID provided by the merchant during the refund request.	no
refunds.payments[?].rrn	Retrieval Reference Number, which is the refund identifier provided by the payment provider.	yes
refunds.payments[?].arn	Acquirer Reference Number, which is the refund identifier provided by the payment provider.	yes
refunds.payments[?].status	Refund status, which may be one of the following:	yes
	pending: Refund request sent, awaiting feedback from the acquiring bank.
	completed: Transaction fully refunded
	rejected: Refund rejected.
refunds.payments[?].fiscal_status	The current status of the refund operation. May be one of the following:	yes
	pending: Operation is in progress.
	failed: Unable to complete the operation due to lack of funds or error.
	refunded: Refund operation completed.
md5_body_sig	MD5 signature to validate callback request. md5(transaction_id+sep31_status+refunded+secret_key) Deprecated! Please use X-Signature header instead	yes
deposit_details	Detailed information about the deposit transaction. Specific payload depends on the payment method Examples are:	no
	{ "payment_group": "bank_card", "bank_card_mask": "1000****0001", "from_first_name": "Saurabh", "from_last_name": "Ghodmare", "payment_method": "r:fab9dcd0-bb93-4f09-b65f-2edb69a3a213"}
	{ "payment_group": "bank_account"}
	{ "payment_group": "ewallet","ewallet_account_id": "475846215"}
	{ "binance_open_user_id": "8f825dd63a8dee291766c81cc4df5c62", "ewallet_account_id": "578144430", "payment_group": "ewallet" "payment_method": "a44ba598-bec9-439e-baef-4dc8b0ae2e4b:80210375-51a1-4ac7-8d83-d3b31857a818",
	payment_group field may be one of the following values: bank_card,cash_collection, crypto, ewallet,bank_account
merchant_external_id	External ID provided by the merchant in the original request.	no
amount_in	Amount the customer has paid.	yes
amount_out	Amount settled to the merchant’s account by the PSP.	yes
external_status	Status provided by the local payment provider	no
external_message	Error details provided by the local payment provider.	no

Remit Callback

Request example:

{
    "amount_body": 100.2,
    "amount_in": 100.2,
    "amount_out": 94.68,
    "asset": "stellar:PURPLE:GBT4VVTDPCNA45MNWX5G6LUTLIEENSTUHDVXO2AQHAZ24KUZUPLPGJZH",
    "body_currency": "iso4217:EUR",
    "payout_details": {
      "bank_card_mask": "401200******3010",
      "payment_group": "bank_card",
      "payment_method": "a7b5ac9a-dac2-46c7-919c-9e478e3daf62:1c032242-bc6f-4b0e-b8e9-7d3fca7a668f",
      "rrn": "435307914502"
    },
    "external_message": "The transaction was completed successfully",
    "md5_body_sig": "cee95760668eb0963ab1dc5304fb6046",
    "md5_sig": "6fc67e043cb47b3cd7066450959117fe",
    "merchant_external_id": "123321",
    "refunded": false,
    "sep31_status": "completed",
    "seq": 1724822157474,
    "status": "done",
    "fiscal_status": "done",
    "transaction_id": "07f62464-fcf1-47b3-a804-3af29b884134"
  }

Request body contains the following elements:

Field	Description	Required
transaction_id	The Payment Service Provider (PSP) transaction ID.	yes
body_currency	Processing currency applicable between the merchant and PSP.	yes
status	The current status of the transaction. Possible values include:	yes
	expired: The payment was not completed within the allotted time, and the transaction has expired.
	done: The transaction was successfully completed.
	refunded: The remit failed, and the funds were returned to the merchant.
	canceled: Transaction canceled by the payment provider.
fiscal_status	The current status of the operation, which may be one of the following:	yes
	pending: Operation is in progress.
	canceled: Remit was canceled.
	expired: Payment was not completed in time, and the operation expired.
	failed: Unable to complete the operation due to lack of funds or error.
	done: Operation completed.
md5_sig	MD5 signature to validate callback request. md5(transaction_id+status+secret_key) Deprecated! Please use X-Signature header instead	yes
seq	Unix timestamp in milliseconds at the moment the callback was created.	yes
sep31_status	Status of the Sep31 transaction, which can be one of the following: - completed - error	yes
refunded	Boolean value indicating whether the transaction was refunded: true/false	yes
md5_body_sig	MD5 signature to validate callback request. md5(transaction_id+sep31_status+refunded+secret_key) Deprecated! Please use X-Signature header instead	yes
payout_details	Details of the remit transaction, with specific fields depending on the payment method used. Example:	no
	{ "payout_details": { "payment_group": "cash_collection", "ready_to_receive": true, "collection_pin": "123987"}}
	payment_group field may be one of the following values: bank_card,cash_collection, crypto, ewallet,bank_account
merchant_external_id	A value of external_id field sent in initial request.	no
amount_in	The amount paid by the customer.	yes
amount_out	The amount settled by the PSP to the merchant’s account.	yes
external_status	Status provided by the local payment provider.	no
external_message	Error details, if applicable.	no

How to make a Refund

If your deposit transaction is in the completed status, then you can initiate a refund for it.

Depending on the payment method and issuer the refund process may take:

• 1 to 2 hours

• 1 to 15 bank days

• up to 8-10 weeks in rare cases.

Request example:

How to make a refund

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID/refund \
        --header 'X-App-Token: APP_KEY'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'
        --header 'Content-Type: application/json'
        --data-raw '{
                      "reason":"{DESCRIPTION}",
                      "external_id": "{YOUR_REFUND_EXTERNAL_ID}"
                    }


Old authentication method [DEPRECATED]

How to make a refund

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID/refund \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'
        --header 'Content-Type: application/json'
        --data-raw '{
                      "reason":"{DESCRIPTION}",
                      "external_id": "{YOUR_REFUND_EXTERNAL_ID}"
                    }


Request body contains the following elements:

Field	Description	Required
reason	Reason of the refund.	no
external_id	Your refund external ID. The external_id field must be unique. If a refund is registered with a duplicated external_id, an error will be returned.	no

Response body contains the following elements:

Field	Description	Required
id	Unique identifier for a refund.	yes
merchant_external_refund_id	Your refund external ID.	no

Example Response:

1. Status code 200, example body:

{
  "id":"refund_id",
  "merchant_external_refund_id":"{YOUR_REFUND_EXTERNAL_ID}"
}

2. Status code 400/500, example body:

{
  "error":"bad_request, refund is not supported for this transaction"
}

3. When external_id is duplicated, status code 400, example body:

{
  "message": "bad_request, psp client refund deposit: {\"error\":\"saveTxWithRefund(): refundSvc.Set(): duplicate external_id\"}",
  "trace_id": "69f7bd2eebcf2834e8404ba6374902d0"
}

Partial Refunds

You can make partial refunds of deposits. In order to initiate partial refund an field "amount" should be added to refund request. It is possible to make several partial refunds for one initial transaction.
Request example:

How to make a partial refund

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID/refund \
        --header 'X-App-Token: APP_KEY'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'
        --header 'Content-Type: application/json'
        --data-raw '{
                      "reason":"{DESCRIPTION}",
                      "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
                      "amount": 100.00
                    }


Old authentication method [DEPRECATED]

How to make a partial refund

curl POST https://fpf-api.armenotech.net/api/v3/merchantGUID/TRANSACTION_ID/refund \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'
        --header 'Content-Type: application/json'
        --data-raw '{
                      "reason":"{DESCRIPTION}",
                      "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
                      "amount": 100.00
                    }


Request body contains the following elements:

Field	Description	Required
amount	Amount of the partial refund.	yes
reason	Reason of the refund.	no
external_id	Your refund external ID. The external_id field must be unique. If a refund is registered with a duplicated external_id, an error will be returned.	no

Response body contains the following elements:

Field	Description	Required
id	Unique identifier for a partial refund.	yes
merchant_external_refund_id	Your refund external ID.	no

Example Response:

1. Status code 200, example body:

{
  "id":"refund_id",
  "merchant_external_refund_id":"{YOUR_REFUND_EXTERNAL_ID}"
}

2. Status code 400/500, example body:

{
  "error":"bad_request, refund is not supported for this transaction"
}

3. When external_id is duplicated, status code 400, example body:

{
  "message": "bad_request, psp client refund deposit: {\"error\":\"saveTxWithRefund(): refundSvc.Set(): duplicate external_id\"}",
  "trace_id": "69f7bd2eebcf2834e8404ba6374902d0"
}

Get Merchant Account Balance

Example request:

How to check account’s balance using merchant_cabinet API

curl https://merchant.armenotech.net/api/v2/merchantGUID/balance\
        --header 'X-App-Token: APP_KEY'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'


Old authentication method [DEPRECATED]

How to check account’s balance using merchant_cabinet API

curl https://merchant.armenotech.net/api/v2/merchantGUID/balance\
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'


Example response:

{
   "data": [
       {
           "balance": 306.07,
           "asset": "USD",
           "asset_key": "ATUSD"
       },
       {
           "balance": 25,
           "asset": "EUR",
           "asset_key": "PURPLE"
       }
   ],
   "total": 332.57,
   "total_currency": "USD"
}

Get Transaction History (CSV)

Retrieve your transaction records in CSV format. Use the query parameters below to filter and customize your results.

Example Request:

How to get a list of transactions

curl -X POST https://fpf-api.armenotech.net/api/v3/merchantGUID/reports/operations/csv-stream\
        --header 'X-App-Token: APP_KEY'
        --header 'X-Sign-Timestamp: {TIMESTAMP}'
        --header 'X-Signature: {SIGNATURE}'
        --header 'Content-Type: application/json'
        -d '{
            "created_at": {
                "from": "2024-01-01T00:00:00Z",
                "to": "2024-12-31T23:59:59Z"
            }
        }'


Old authentication method [DEPRECATED]

How to get a list of transactions

curl -X POST https://merchant.armenotech.net/api/v2/merchantGUID/reports/operations/csv-stream\
        --header 'X-App-Token: APP_KEY' \
        --header 'X-App-Secret: APP_SECRET' \
        --header 'Content-Type: application/json' \
        -d '{
            "created_at": {
                "from": "2024-01-01T00:00:00Z",
                "to": "2024-12-31T23:59:59Z"
            }
        }'


This endpoint accepts the following query parameters:

Parameter	Description	Example	Required
created_at	Start and end date in RFC-3339 format (e.g., 2023-10-02T00:00:00Z). Filters operations by creation date.	"created_at": {"from": "2024-01-01T00:00:00Z", "to": "2024-12-31T23:59:59Z"}	yes
updated_at	End date in RFC-3339 format (e.g., 2023-10-02T00:00:00Z). Filters operations by last updated date.	"updated_at": {"from": "2024-01-01T00:00:00Z", "to": "2024-12-31T23:59:59Z"}	no
pagination	Controls the ordering of results before CSV generation. sort_by — Column to order by: created_at or updated_at ordering. Sort direction: ASC or DESC	"pagination": {"sort_by": "created_at", "ordering": "desc"}	no
types	Operation type to filter by. Returns all types if not specified. Available values: deposit, remit, refund, chargeback	"types": ["deposit", "remit"]	no
statuses	Filter by operation status. Available values: canceled, expired, failed, payed, pending, done, refunded, chargeback. Statuses vary by operation type: Deposits: pending (in progress), canceled, expired (payment not completed in time), done (completed). Remits: pending (in progress), canceled, expired (payment not completed in time), failed (insufficient funds or error), done (completed). Refunds: pending (in progress), failed (insufficient funds or error), refunded (completed) Chargebacks: chargeback (payment disputed and refunded to customer)	"statuses": ["pending" ]	no
methods	Filter by payment method category. Available values: BANKCARD, CASH, CRYPTO, EWALLET, WIRETRANSFER, BINANCE	"methods": ["BANKCARD", "WIRETRANSFER"]	no
operation_ids	Unique identifier for a single operation within a transaction (e.g., deposit, refund, chargeback, or remit). While a Transaction ID groups all related operations, the Operation ID refers to one specific action. Filtering by this parameter returns only that individual operation.	"operation_ids": ["550e8400-e29b-41d4-a716-446655440000", "550e8400-e29b-41d4-a716-446655440001"]	no
unified_transaction_ids	Unique identifier for the entire payment lifecycle. Links all related operations—deposits, refunds, chargebacks—under a single transaction. Use this to retrieve the full set of related operations in one report.	"unified_transaction_ids": ["550e8400-e29b-41d4-a716-446655440002", "550e8400-e29b-41d4-a716-446655440003"]	no
external_ids	Merchant-assigned reference ID for tracking purposes. Using this attribute in a report generation request results in filtering by the merchant_external_id attribute from the transaction initialization request.	"external_ids": ["ext-12345", "ext-67890"]	no
body_currencies	Currencies in which the merchant initiated transactions in PSP.	"body_currencies": [ "USD", "EUR"]	no

Example response:

TRANSACTION ID,UNIFIED TRANSACTION ID,RRN,CREATED,UPDATED,EXTERNAL ID,PAYER ID,STATUS,METHOD,TYPE,COUNTRY,BODY AMOUNT,USER FEE,MERCHANT FEE,BODY CURRENCY,CONVERSION RATE,CHARGED AMOUNT,CHARGED CURRENCY,CREDITED AMOUNT,CREDITED CURRENCY,UNIFIED ERROR MESSAGE,CARD HOLDER,CARD MASKED NUMBER
b22843e0-4c60-4c56-8ea8-357a2ed65dee,b22843e0-4c60-4c56-8ea8-357a2ed65dee,,04-04-2025 11:54:58.19752 +0000 UTC,04-04-2025 11:55:31.510134 +0000 UTC,autotestExternalID1743767697350,,canceled,BANKCARD,remit,POLAND,30.00,0.00,0.00,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,4111111111111111
06d2cee4-225e-4edb-af41-e1f85b7f0d04,06d2cee4-225e-4edb-af41-e1f85b7f0d04,,04-04-2025 11:53:28.105722 +0000 UTC,04-04-2025 12:24:50.184459 +0000 UTC,autotestExternalID1743767607103,,expired,BANKCARD,deposit,,30.00,1.00,0.15,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,
e96bf6bf-f23d-48a1-a550-a9860e12ed0a,e96bf6bf-f23d-48a1-a550-a9860e12ed0a,,04-04-2025 11:51:46.282755 +0000 UTC,04-04-2025 12:23:15.59409 +0000 UTC,autotestExternalID1743767504631,,expired,BANKCARD,deposit,,30.00,1.00,0.15,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,
2c233f01-5261-44f9-ab78-cf90f7adf7f6,2c233f01-5261-44f9-ab78-cf90f7adf7f6,,04-04-2025 11:17:00.686727 +0000 UTC,04-04-2025 11:17:34.291443 +0000 UTC,autotestExternalID1743765419873,,canceled,BANKCARD,remit,POLAND,30.00,0.00,0.00,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,4111111111111111
a68b6af9-2c28-4954-8bae-80d505befe91,a68b6af9-2c28-4954-8bae-80d505befe91,,04-04-2025 11:15:25.898994 +0000 UTC,04-04-2025 11:46:49.405302 +0000 UTC,autotestExternalID1743765324863,,expired,BANKCARD,deposit,,30.00,1.00,0.15,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,
31cd8102-ec24-4b72-8f76-f63e9031b2d6,31cd8102-ec24-4b72-8f76-f63e9031b2d6,,04-04-2025 11:13:24.604913 +0000 UTC,04-04-2025 11:45:29.521178 +0000 UTC,autotestExternalID1743765203244,,expired,BANKCARD,deposit,,30.00,1.00,0.15,iso4217:USD,1.00,0.00,iso4217:USD,0.00,iso4217:USD,,Automation Automation,

CSV file contains the following transaction details:

Column	Description
CREATED	Operation timestamp recorded by APS. Timezone: UTC.
UPDATED	Timestamp of the last update to the operation, recorded by APS. Timezone: UTC.
TRANSACTION ID	Unique identifier for the entire payment lifecycle. Links all related operations—deposits, refunds, chargebacks—under a single transaction. Use this to retrieve the full set of related operations in one query.
UNIFIED TRANSACTION ID	Unique identifier for the entire payment lifecycle. Links all related operations—deposits, refunds, chargebacks—under a single transaction. Use this to retrieve the full set of related operations in one query.
OPERATION ID	Unique identifier for a single operation within a transaction (e.g., deposit, refund, chargeback, or remit). Unlike the Transaction ID, which groups all related operations, the Operation ID refers to one specific action. Returns only that individual operation.
EXTERNAL ID	Merchant-assigned reference ID for tracking purposes.
PAYER ID	Merchant-provided unique identifier for the customer.
METHOD	Payment method selected for the operation. May be empty if the operation was abandoned before a payment method was selected.
CARD HOLDER	Name provided during payment, either submitted by the payer or passed to APS by the merchant. May not match the name on the bank card.
CARD MASKED NUMBER	Masked bank card number used for payment processing.
COUNTRY	Bank card issuing country. Applies to card transactions only.
TYPE	Operation type: Deposit, Remit, Refund, or Chargeback.
STATUS	Current status of the operation. Values vary by operation type: Deposits: pending (in progress), canceled, expired (payment not completed in time), done (completed). Remits: pending (in progress), canceled, expired (payment not completed in time), failed (insufficient funds or error), done (completed). Refunds: pending (in progress), failed (insufficient funds or error), refunded (completed). Chargebacks: chargeback (payment disputed and refunded to customer).
RRN	Reference Retrieval Number (RRN). Unique identifier for tracking an operation across payment systems. Applies to deposit and refund operations only.
BODY AMOUNT	Amount before applying any fees
BODY CURRENCY	Currency of the body amount
CONTRACT FEE	The fee rate agreed upon with the merchant
CONTRACT FEE CURRENCY	Currency of the contract fee
CUSTOMER FEE	The fee the customer sees and pays during the transaction
CUSTOMER FEE CURRENCY	Currency of the customer fee
CHARGED AMOUNT	Amount paid by the customer in local currency (deposits) or by the merchant in assets (remits).
CHARGED CURRENCY	Currency of the charged amount
MERCHANT FEE	Amount paid by the merchant to cover transaction costs on behalf of the customer. Value is zero if the customer pays, or negative if the merchant covers part or all of the costs.
MERCHANT FEE CURRENCY	Currency of the merchant fee
CREDITED AMOUNT	Assets credited to the merchant (deposits) or local currency credited to the customer (remits).
CREDITED CURRENCY	Currency of the credited amount
CONVERSION RATE	The exchange rate applied to the customer
UNIFIED ERROR MESSAGE	Error message that was provided by payment service provider (VISA, MasterCard, etc).
